Whether you are building out a new office, upgrading an existing network, or adding security cameras and access control to a commercial property in Sarasota, structured cabling is the foundation everything else runs on. Get it right and your network will support your business for 15–20 years. Get it wrong and you will be rewiring in three years. This guide covers real 2026 installation costs for structured cabling in Sarasota and Manatee County — from a small office to a multi-building commercial campus.
Average Cost of Structured Cabling Installation in Sarasota, FL
Structured cabling is priced primarily by the number of data drops (individual cable runs to workstations, cameras, access points, or phones) and the cable category installed. For most Sarasota properties, expect a professionally installed structured cabling system to range from:
Cost Per Data Drop by Cable Type
- Cat5e (legacy — not recommended for new installations): $75 – $150 per drop
- Cat6 (standard copper): $100 – $175 per drop
- Cat6A (10-Gigabit capable — recommended for 2026+): $125 – $225 per drop
- Multimode fiber optic: $150 – $350 per drop
- Single-mode fiber optic: $200 – $450 per drop
Cost by Project Size
- Small office (up to 20 drops): $2,000 – $6,000
- Medium office (20–50 drops): $5,000 – $15,000
- Large commercial (50–100 drops): $12,000 – $30,000
- Enterprise or multi-floor building: $25,000 – $100,000+
- Single-family home (smart home or home office): $1,500 – $5,000
These prices include cable, patch panels, wall plates, cable management, and termination and testing. Network switches, routers, and wireless access points are priced separately.

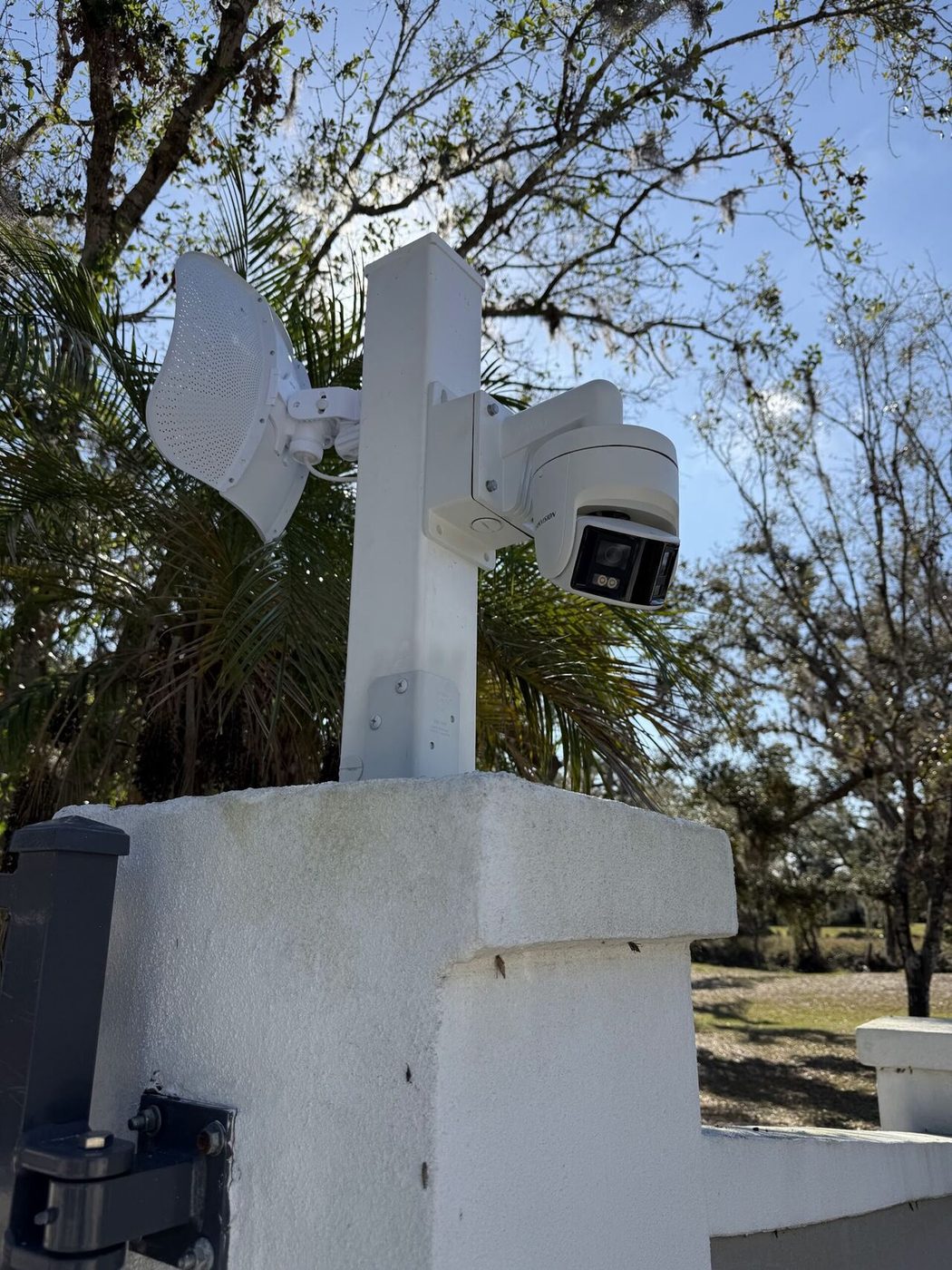

Professional network and low-voltage cabling installation by All Technology Security — Sarasota, FL.
What Factors Affect the Price?
1. Cable Category
The single biggest pricing variable is the cable type. Cat5e — still found in many older Sarasota commercial buildings — maxes out at 1 Gigabit over 100 meters and is no longer recommended for new installations. Cat6A is now the standard for commercial projects, supporting 10-Gigabit Ethernet with better resistance to crosstalk in high-density installations. For backbone runs between network closets or building-to-building connections, single-mode fiber is increasingly cost-competitive and provides future-proof bandwidth for decades.
2. Number of Drops and Run Length
Every data drop is a cable run from a wall plate back to the patch panel in the network closet. Short runs in a small Sarasota office take 30–45 minutes each. Long runs in a large commercial building — especially across concrete floors or through conduit in a multi-story structure — can take 2–4 hours per drop. Run complexity is often the biggest driver of labor cost differences between bids.
3. Building Construction Type
New construction with open stud walls is the most affordable scenario — cable can be installed before drywall and costs 40–60% less per drop than retrofitting a finished building. Retrofitting a finished office in an older Sarasota CBS (concrete block stucco) commercial building involves fishing wire through walls, cutting access holes in drywall, and often running surface conduit — all of which add labor cost. Warehouse and retail environments with open ceilings fall between these extremes.
4. Plenum vs. Non-Plenum Cable
In Florida commercial construction, the majority of ceiling spaces qualify as plenum (air-return) zones under fire code — which means plenum-rated cable (CMP) is required by law. Plenum cable costs 30–50% more than standard (CMR/riser) cable and burns with significantly less toxic smoke if ignited. Always confirm with your contractor whether your installation requires CMP-rated cable — using the wrong type in a plenum space is a code violation that will fail inspection.
5. Infrastructure and Patch Panel Quality
The patch panel, cable management hardware, and rack system at the network termination point account for $300–$3,000 of a typical project depending on port count and brand. Cutting corners on patch panels and cable management creates long-term maintenance headaches — a well-documented, labeled installation typically takes 20–30% longer to install but saves significant troubleshooting time over the system's lifespan.
6. Testing and Certification
Professional structured cabling includes end-to-end testing of every installed run with a calibrated cable certifier. This test confirms that each cable meets the TIA-568 performance standard for its rated category and generates a pass/fail report for every drop. A 30-year manufacturer warranty on cabling systems (available with certified channel components) requires this testing documentation. Beware of installers who omit certification — an untested installation has no performance guarantee.
What's Included in a Professional Structured Cabling Installation?
Every structured cabling project completed by All Technology Security includes:
- ✅ Free on-site assessment and cabling design drawing
- ✅ TIA-568 compliant installation methodology
- ✅ Plenum or non-plenum cable selection per Florida fire code
- ✅ Professional cable management, labeling, and documentation
- ✅ Patch panel termination and rack installation
- ✅ End-to-end certification testing with Fluke DSX cable analyzer
- ✅ As-built documentation showing every cable run and label
- ✅ 30-year manufacturer warranty on certified channel installations
DIY vs. Professional Cabling in Sarasota
Surface-mount cable kits and pre-made patch cables are available at Home Depot for $50–$200 per drop. DIY cabling can work for a basic home office setup, but carries significant limitations for business environments:
- No certification testing — no way to confirm 10GbE performance without a cable certifier
- Improper termination reduces performance and increases crosstalk in Cat6A installations
- Non-compliant cable routing fails fire inspection in commercial buildings
- No as-built documentation for future troubleshooting or tenant changes
- Voids manufacturer warranty on cable and network equipment

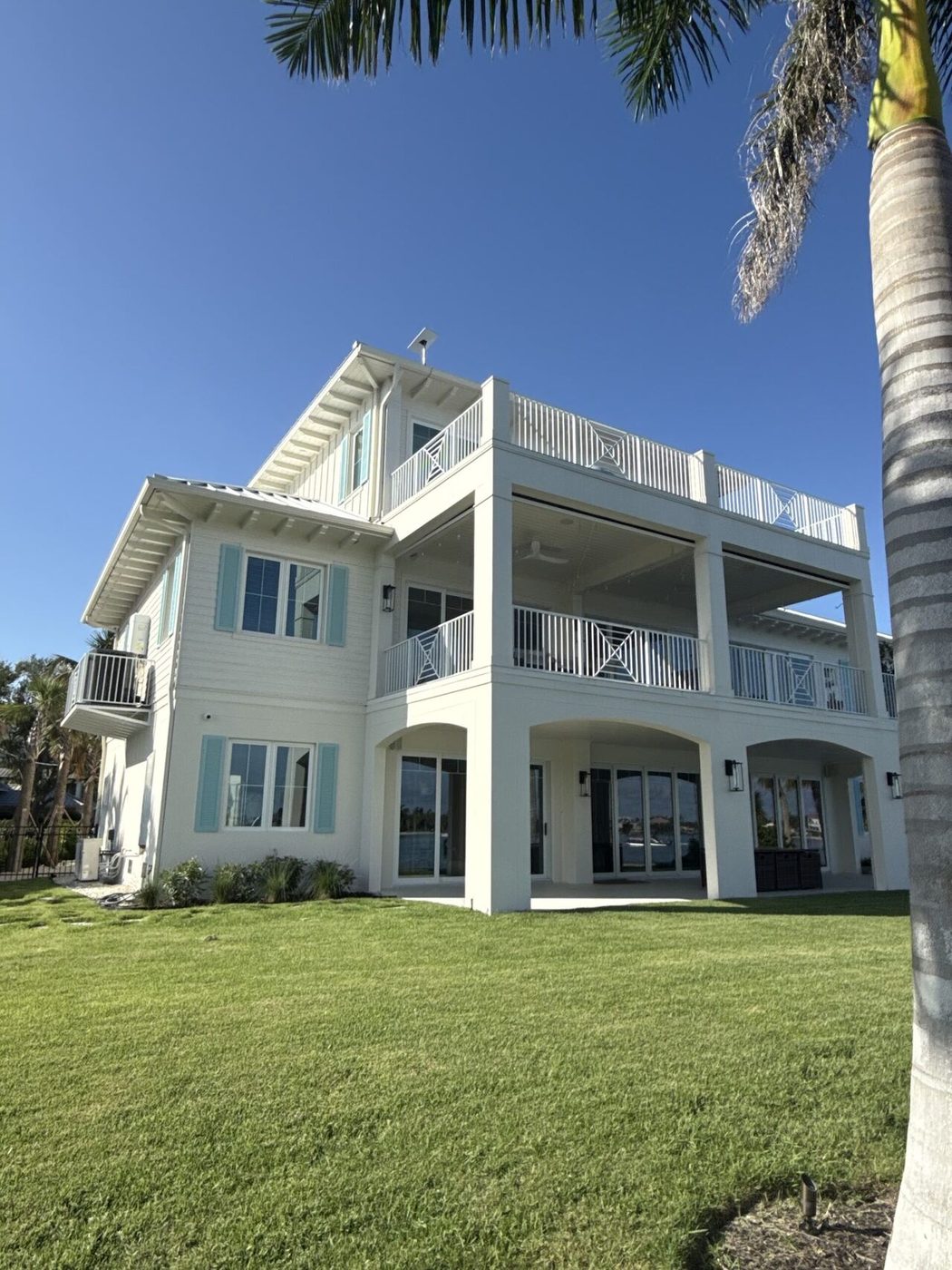

Complete low-voltage infrastructure installation at a Sarasota waterfront estate — All Technology Security.
For Sarasota businesses upgrading to WiFi 6 access points, 4K security cameras, or VoIP phone systems, the network cabling must support the bandwidth those devices demand. We regularly see businesses whose performance bottleneck is not their internet connection or their switches — it is aging Cat5e cabling that tops out at 1 Gigabit and cannot support the volume of simultaneous high-bandwidth devices in a 2026 office environment.
Do You Need a Permit for Structured Cabling in Sarasota County?
Low-voltage data cabling installations generally do not require a building permit in Sarasota County for standard office environments. However, any installation involving penetrations through fire-rated walls or floors, work in plenum spaces of commercial buildings under fire code inspection, or integration with life-safety systems requires coordination with the building department. Per the Florida Department of Business and Professional Regulation, structured cabling and low-voltage installations in commercial buildings must be performed by a licensed low-voltage or electrical contractor. All Technology Security holds all required Florida state licenses for low-voltage commercial work.
How to Get an Accurate Quote in Sarasota
Structured cabling quotes are highly site-specific. The number of drops, run lengths, building construction, and cable category all determine the final cost — and no two commercial spaces are identical. The most accurate approach is a free on-site assessment where our technician maps the space, counts every required endpoint, and delivers a written quote with full specifications.
Call (941) 735-4586 or submit our free estimate form. We serve all of Sarasota and Manatee County and schedule assessments Monday through Saturday.
Structured Cabling Installation Cost by City in Southwest Florida
Cabling costs are relatively consistent across Southwest Florida, with variation driven primarily by building age, construction type, and project complexity rather than geography:
Sarasota, FL
The core of our structured cabling market. Sarasota commercial installations range from $2,000 for a small professional office to $100,000+ for a multi-floor commercial build-out. The Sarasota medical corridor on University Parkway and downtown Sarasota office buildings represent a significant portion of our commercial cabling work, often involving structured cabling upgrades alongside security camera and access control installations.
Bradenton, FL
Bradenton commercial cabling follows similar pricing to Sarasota. The growing east Bradenton industrial and warehouse corridor increasingly requires Cat6A infrastructure to support high-density IP camera systems, automated access control, and cloud-based business systems. New commercial construction in this area is the most cost-effective structured cabling scenario we encounter.
Lakewood Ranch, FL
Lakewood Ranch has one of the highest concentrations of new commercial construction in Southwest Florida. Most buildings in the Lakewood Ranch Town Center and business district were built post-2010 with modern infrastructure, making Cat6A upgrades straightforward. Medical offices in the Lakewood Ranch medical campus represent a specialized market requiring high-density, high-reliability cabling for electronic health record systems and medical imaging networks.
Venice, FL
Smaller professional offices and retail spaces in Venice typically need 10–25 data drops for a complete office buildout — $1,500–$6,000 for most projects. Older downtown Venice commercial buildings require surface conduit runs in many cases due to CBS construction, which affects both cost and aesthetics.
Siesta Key & Longboat Key
Luxury residential properties on Siesta Key and Longboat Key are increasingly requesting whole-home structured cabling for smart home systems, home offices, and integrated security and AV infrastructure. Whole-home cabling installations on these barrier island estates typically run $3,000–$10,000 depending on home size and the number of endpoints.
North Port, Nokomis & Osprey
Rapidly growing commercial corridors in Nokomis and Osprey offer new construction opportunities where cabling infrastructure can be installed efficiently before wall closure. Most projects in this area run $2,000–$12,000 for commercial applications and are among the most straightforward installations we complete.
Parrish & Manatee County
New commercial development in Parrish provides clean-slate structured cabling opportunities at competitive prices. We service Parrish from our Bradenton team with no travel premium. Most new construction commercial projects in Parrish run $2,000–$15,000 depending on building size and endpoint count.
For the most accurate quote for your property, contact All Technology Security for a free on-site structured cabling assessment with no obligation anywhere in Sarasota and Manatee County.
Frequently Asked Questions
How long does structured cabling installation take in Sarasota?
A small office installation of 10–20 drops typically takes one full day. A medium commercial project of 30–50 drops usually takes 2–3 days. Larger projects are phased to minimize disruption to active business operations. We offer after-hours and weekend scheduling for businesses that cannot tolerate downtime during installation.
What is the difference between Cat6 and Cat6A for my Sarasota business?
Cat6 supports 10 Gigabit Ethernet up to 55 meters and 1 Gigabit up to 100 meters. Cat6A supports 10 Gigabit over the full 100-meter distance and handles higher Power over Ethernet (PoE++) loads required by 4K security cameras and WiFi 6 access points. For any new installation in 2026, Cat6A is the recommended minimum — the incremental cost over Cat6 is modest but the performance headroom lasts significantly longer.
Can structured cabling support both data and security cameras on the same infrastructure?
Yes — this is one of the primary reasons businesses combine structured cabling and security camera projects. IP security cameras, VoIP phones, WiFi access points, and workstations all run on the same Cat6A infrastructure using Power over Ethernet (PoE). Installing cabling for multiple systems simultaneously is significantly more cost-effective than separate installations.
